Hi Wolfram,
On Wed, Apr 23, 2025 at 9:26 AM Wolfram Sang
<wsa+renesas@xxxxxxxxxxxxxxxxxxxx> wrote:
>
>
> > Well, frankly, this is the only test I tried and, yes, it did work for
> > me. Will check 'incomplete_write_byte' later today. I will also check if
> > I need to run the tests more often. I did not do an endless loop.
>
> Both tests work for me, even in an endless loop. I also get the desired
> signal outputs checking with the logic analyzer.
>
> Here is the branch I used:
>
> git://git.kernel.org/pub/scm/linux/kernel/git/wsa/linux.git renesas/g3s/riic-recovery-experimental
>
I prepared a setup on SMARC2 RZ/G3S and I can confirm it is working
(but this is failing on SMARC RZ/G2L I'll look further into this)
For the SMARC2 RZ/G3S to make sure the I2C GPIO pins behave as
opendrain I have the below patch for pinctrl
drivers/pinctrl/renesas/pinctrl-rzg2l.c | 24 +++++++++++++++++++++++-
1 file changed, 23 insertions(+), 1 deletion(-)
diff --git a/drivers/pinctrl/renesas/pinctrl-rzg2l.c
b/drivers/pinctrl/renesas/pinctrl-rzg2l.c
index 78fa08ff0faa..04bbc7499ce9 100644
--- a/drivers/pinctrl/renesas/pinctrl-rzg2l.c
+++ b/drivers/pinctrl/renesas/pinctrl-rzg2l.c
@@ -167,6 +167,7 @@
#define NOD_MASK 0x01
#define SMT_MASK 0x01
+#define PM_HI_Z 0x0
#define PM_INPUT 0x1
#define PM_OUTPUT 0x2
@@ -176,6 +177,9 @@
#define RZG2L_TINT_MAX_INTERRUPT 32
#define RZG2L_PACK_HWIRQ(t, i) (((t) << 16) | (i))
+#define GPIO8_P8_2 66
+#define GPIO8_P8_3 67
+
/* Custom pinconf parameters */
#define RENESAS_RZV2H_PIN_CONFIG_OUTPUT_IMPEDANCE (PIN_CONFIG_END + 1)
@@ -1703,6 +1707,10 @@ static int rzg2l_gpio_request(struct gpio_chip
*chip, unsigned int offset)
pctrl->data->pmc_writeb(pctrl, reg8, PMC(off));
spin_unlock_irqrestore(&pctrl->lock, flags);
+ if (offset == GPIO8_P8_2 || offset == GPIO8_P8_3) {
+ rzg2l_rmw_pin_config(pctrl, PUPD(off), bit, PUPD_MASK, 1);
+ rzg2l_rmw_pin_config(pctrl, IOLH(off), bit, IOLH_MASK, 0x3);
+ }
return 0;
}
@@ -1722,7 +1730,10 @@ static void rzg2l_gpio_set_direction(struct
rzg2l_pinctrl *pctrl, u32 offset,
reg16 = readw(pctrl->base + PM(off));
reg16 &= ~(PM_MASK << (bit * 2));
- reg16 |= (output ? PM_OUTPUT : PM_INPUT) << (bit * 2);
+ if (offset == GPIO8_P8_2 || offset == GPIO8_P8_3)
+ reg16 |= (output ? PM_OUTPUT : PM_HI_Z) << (bit * 2);
+ else
+ reg16 |= (output ? PM_OUTPUT : PM_INPUT) << (bit * 2);
writew(reg16, pctrl->base + PM(off));
spin_unlock_irqrestore(&pctrl->lock, flags);
@@ -1769,6 +1780,11 @@ static void rzg2l_gpio_set(struct gpio_chip
*chip, unsigned int offset,
unsigned long flags;
u8 reg8;
+ if (offset == GPIO8_P8_2 || offset == GPIO8_P8_3) {
+ rzg2l_gpio_set_direction(pctrl, offset, value ? 0 : 1);
+ return;
+ }
+
spin_lock_irqsave(&pctrl->lock, flags);
reg8 = readb(pctrl->base + P(off));
@@ -1804,6 +1820,12 @@ static int rzg2l_gpio_get(struct gpio_chip
*chip, unsigned int offset)
reg16 = readw(pctrl->base + PM(off));
reg16 = (reg16 >> (bit * 2)) & PM_MASK;
+ if (offset == GPIO8_P8_2 || offset == GPIO8_P8_3) {
+ if (reg16 == PM_HI_Z)
+ return 1;
+ return 0;
+ }
+
if (reg16 == PM_INPUT)
return !!(readb(pctrl->base + PIN(off)) & BIT(bit));
else if (reg16 == PM_OUTPUT)
--
2.49.0
Below is my loop tests for SMARC2 RZ/G3S which worked without any issues:
root@smarc-rzg3s:~/i2c# cat ./i2c-inject-error.sh
DEFAULT_LOOP_COUNT=500
incomplete_address_phase() {
cd /sys/kernel/debug/i2c/i2c-2/
for i in {1..1}; do
echo 0x1a > incomplete_address_phase;
val=$(i2cget -y -f 0 0x1a 3)
if [ "$?" != "0" ] || [ "${val}" != "0x0c" ]; then
echo "I2C Read error (ret:$?) ${val}!!"
exit 1
fi
echo "Read val:${val}"
i2cget -y -f 0 0x1a 3;
if [ "$?" != "0" ]; then
echo "I2C Read error when no error injection!!"
exit 1
fi
done
}
incomplete_write_byte() {
cd /sys/kernel/debug/i2c/i2c-2/
for i in {1..1}; do
val1=$(printf "0x%02x" $((RANDOM & 0xff)))
val2=$(printf "0x%02x" $((RANDOM & 0xff)))
i2cset -y -f 0 0x57 0 ${val1}
i2cset -y -f 0 0x57 8 ${val2}
r1=$(i2cget -y -f 0 0x57 0x0)
if [ "$?" != "0" ] || [ "${r1}" != "${val1}" ]; then
echo "1: I2C Read error (ret:$?) ${r1}!!"
exit 1
fi
echo 0x57 > incomplete_write_byte
r1=$(i2cget -y -f 0 0x57 0x8)
if [ "$?" != "0" ] || [ "${r1}" != "${val2}" ]; then
echo "2: I2C Read error (ret:$?) ${r1}!!"
exit 1
fi
r1=$(i2cget -y -f 0 0x57 0x0)
if [ "$?" != "0" ] || [ "${r1}" != "${val1}" ]; then
echo "3: I2C Read error (ret:$?) ${r1}!!"
exit 1
fi
done
}
if [ ! -z "${1}" ];then
DEFAULT_LOOP_COUNT=$1
fi
for i in $(seq 0 $DEFAULT_LOOP_COUNT);do
echo "Loop count: "$i;
incomplete_address_phase
incomplete_write_byte
done
root@smarc-rzg3s:~/i2c#

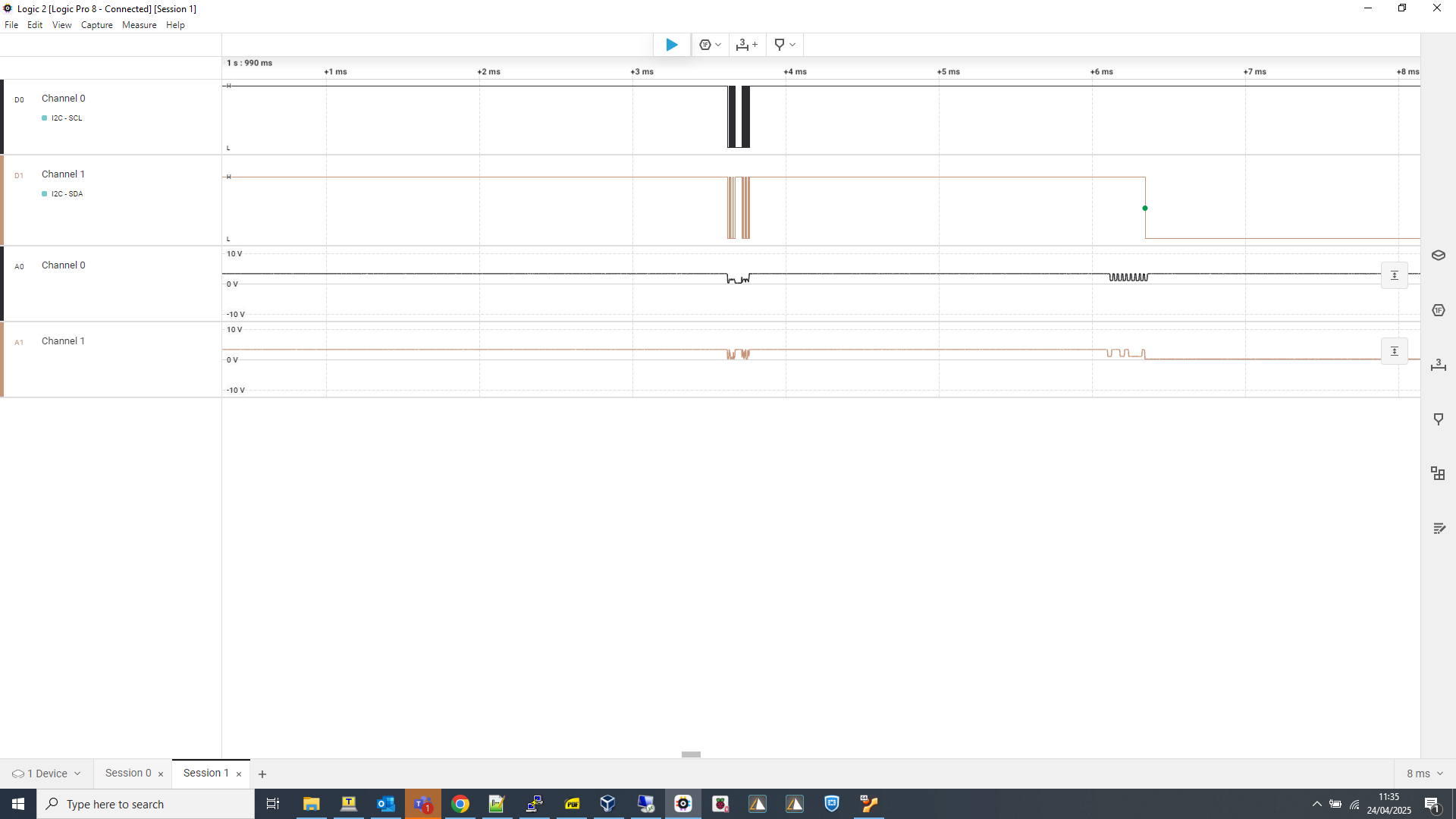

Ive attached the analyzer for SMARC RZ/G2L where it is failing for
`incomplete_address_phase`.
Cheers,
Prabhakar
Attachment:
Description: PNG image
Attachment:
Description: PNG image
