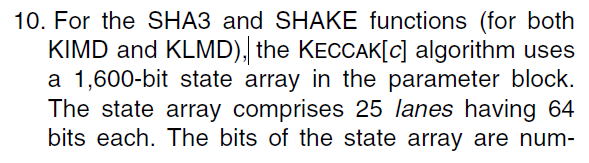

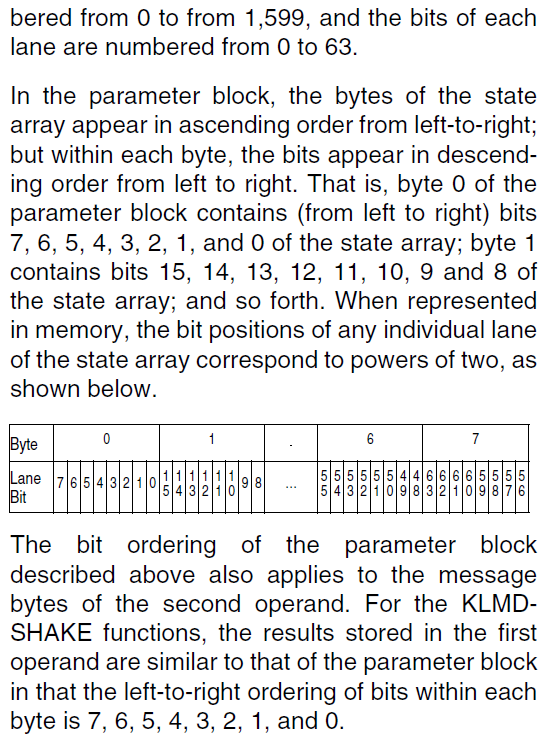

On 23.05.2025 13:41, Herbert Xu wrote: > On Thu, May 22, 2025 at 04:13:59PM +0200, Ingo Franzki wrote: >> >> May 22 15:59:44 b3545036.lnxne.boe kernel: alg: ahash: sha3-224-s390 test failed (wrong result) on test vector "random: psize=388 ksize=0", cfg="random: may_sleep use_final src_divs=[<flush>100.0%@+2585] key_offset=82" >> May 22 15:59:44 b3545036.lnxne.boe kernel: alg: self-tests for sha3-224 using sha3-224-s390 failed (rc=-22) > > I have no idea what's going on with the sha3 export state, perhaps > the hardware just stores things in a different byte-order? The IBM Z principle of operations manual states for KIMD with SHA3 function code: "A 200-byte intermediate message digest is generated for the 136-byte message blocks in operand 2 using the KECCAK[c] algorithm with the 200-byte initial chaining value in the parameter block. The generated intermediate message digest, also called the output chaining value (OCV), is stored in the chaining- value field of the parameter block. See programming note 10 on page 7-202 regarding the numbering of the bits in the parameter block and second operand as compared with the numbering of the bits in the state array." For the text of note 10 on page 7-202 see screenshots attached (contains a graphic, so not possible to just copy & paste it). > > Please apply this debugging patch and send me the results on s390. > It goes on top of commit 0413bcf0fc460a68a2a7a8354aee833293d7d693. > If you've already reverted 18c438b228558e05ede7dccf947a6547516fc0c7 > you would need to reapply it first. Here is the output from modprobing sha3_256_s390: I guess the output is somehow interleaved, since both sha3-224 and sha3-256 are tested concurrently..... I hope you can sort it out what belongs to what. May 23 13:50:09 b8345006.lnxne.boe kernel: alg: ahash: sha3 export state different from generic: sha3-256-s390 May 23 13:50:09 b8345006.lnxne.boe kernel: alg: ahash: sha3 export state different from generic: sha3-224-s390 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000000: 82 b2 3c 2d 20 76 43 a5 08 dd 0f 8e 75 dc ac a1 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000000: 91 f7 19 50 95 49 c0 ab a7 02 e3 61 55 80 ef b3 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000010: d3 aa 7a db f8 d1 da 66 36 e5 d5 7f c8 60 58 c1 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000020: dd 5a 0f 18 8b f6 13 8f e3 5d ef 3b da e8 b5 93 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000010: af ce 61 40 0d 81 6b c5 5d 6a b9 6c b7 af f9 b0 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000030: 7e 6b b3 2e 37 c3 99 f5 bf c6 3b 6e 04 6d 5e fb May 23 13:50:09 b8345006.lnxne.boe kernel: 00000020: 08 cc b1 cb 31 58 4b 2d d9 bf 6f 1c 79 cf d6 ca May 23 13:50:09 b8345006.lnxne.boe kernel: 00000040: 17 42 44 08 53 6d 48 23 59 2d 8e f0 37 0d 20 87 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000030: ce f0 95 67 c0 af 8c c1 ff 49 9b 17 ca 32 b8 4f May 23 13:50:09 b8345006.lnxne.boe kernel: 00000050: cb 87 72 42 bd db d6 65 4c d3 9d 2b b0 b4 66 ad May 23 13:50:09 b8345006.lnxne.boe kernel: 00000040: 87 5e 74 43 37 ed 5f ae d7 3a f4 8b 76 4e 04 f1 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000060: 62 5d be c3 88 9d 0a c9 f7 20 61 2b 16 6e 0a a3 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000050: 34 a9 0e b2 72 f3 34 0d e0 a6 00 97 a0 17 ca 2e May 23 13:50:09 b8345006.lnxne.boe kernel: 00000070: 20 43 90 11 d9 e4 e1 2d 11 46 f8 65 79 53 2e c6 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000080: da 56 b5 d2 e8 c2 df eb 3c 78 74 e5 13 0a d7 9c May 23 13:50:09 b8345006.lnxne.boe kernel: 00000090: 00 16 e5 ae 5f 66 ec 17 3f 1c de 84 73 68 f4 1e May 23 13:50:09 b8345006.lnxne.boe kernel: 000000a0: 1c f5 0f 1f 42 d5 2d ed 73 61 9f 18 c2 23 69 fb May 23 13:50:09 b8345006.lnxne.boe kernel: 00000060: 90 5f cc 65 89 3c 50 77 04 e7 f3 9c 7c 47 9c 12 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000070: 00 84 01 98 32 d0 5a 81 7d 07 5b 4e 8b 76 39 fe May 23 13:50:09 b8345006.lnxne.boe kernel: 000000b0: 3c 2f b6 60 37 0c a1 5b a6 1f cc 12 19 a4 28 8c May 23 13:50:09 b8345006.lnxne.boe kernel: 00000080: 9a e6 a8 d9 cf d1 c9 e5 d4 c7 28 f7 e0 64 94 b3 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000090: a4 58 45 f8 bf 4c 18 fe 89 30 f0 3c 8f 28 58 b3 May 23 13:50:09 b8345006.lnxne.boe kernel: 000000a0: c9 16 ef dc 22 fb f6 f3 88 db 3f 28 1f f4 c3 b7 May 23 13:50:09 b8345006.lnxne.boe kernel: 000000c0: a3 ba 70 b3 a2 bb 6d 62 May 23 13:50:09 b8345006.lnxne.boe kernel: 000000b0: 03 0a 4f 74 6c 9e 0b 9f 08 05 f9 24 32 1e 67 6d May 23 13:50:09 b8345006.lnxne.boe kernel: 000000c0: 06 78 41 40 6e 5e f3 e4 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000000: a5 43 76 20 2d 3c b2 82 a1 ac dc 75 8e 0f dd 08 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000000: ab c0 49 95 50 19 f7 91 b3 ef 80 55 61 e3 02 a7 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000010: c5 6b 81 0d 40 61 ce af b0 f9 af b7 6c b9 6a 5d May 23 13:50:09 b8345006.lnxne.boe kernel: 00000020: 2d 4b 58 31 cb b1 cc 08 ca d6 cf 79 1c 6f bf d9 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000030: c1 8c af c0 67 95 f0 ce 4f b8 32 ca 17 9b 49 ff May 23 13:50:09 b8345006.lnxne.boe kernel: 00000010: 66 da d1 f8 db 7a aa d3 c1 58 60 c8 7f d5 e5 36 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000040: ae 5f ed 37 43 74 5e 87 f1 04 4e 76 8b f4 3a d7 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000020: 8f 13 f6 8b 18 0f 5a dd 93 b5 e8 da 3b ef 5d e3 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000050: 0d 34 f3 72 b2 0e a9 34 2e ca 17 a0 97 00 a6 e0 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000060: 77 50 3c 89 65 cc 5f 90 12 9c 47 7c 9c f3 e7 04 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000070: 81 5a d0 32 98 01 84 00 fe 39 76 8b 4e 5b 07 7d May 23 13:50:09 b8345006.lnxne.boe kernel: 00000080: e5 c9 d1 cf d9 a8 e6 9a b3 94 64 e0 f7 28 c7 d4 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000030: f5 99 c3 37 2e b3 6b 7e fb 5e 6d 04 6e 3b c6 bf May 23 13:50:09 b8345006.lnxne.boe kernel: 00000090: fe 18 4c bf f8 45 58 a4 b3 58 28 8f 3c f0 30 89 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000040: 23 48 6d 53 08 44 42 17 87 20 0d 37 f0 8e 2d 59 May 23 13:50:09 b8345006.lnxne.boe kernel: 000000a0: f3 f6 fb 22 dc ef 16 c9 b7 c3 f4 1f 28 3f db 88 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000050: 65 d6 db bd 42 72 87 cb ad 66 b4 b0 2b 9d d3 4c May 23 13:50:09 b8345006.lnxne.boe kernel: 00000060: c9 0a 9d 88 c3 be 5d 62 a3 0a 6e 16 2b 61 20 f7 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000070: 2d e1 e4 d9 11 90 43 20 c6 2e 53 79 65 f8 46 11 May 23 13:50:09 b8345006.lnxne.boe kernel: 000000b0: 9f 0b 9e 6c 74 4f 0a 03 6d 67 1e 32 24 f9 05 08 May 23 13:50:09 b8345006.lnxne.boe kernel: 000000c0: e4 f3 5e 6e 40 41 78 06 May 23 13:50:09 b8345006.lnxne.boe kernel: 00000080: eb df c2 e8 d2 b5 56 da 9c d7 0a 13 e5 74 78 3c May 23 13:50:09 b8345006.lnxne.boe kernel: 00000090: 17 ec 66 5f ae e5 16 00 1e f4 68 73 84 de 1c 3f May 23 13:50:09 b8345006.lnxne.boe kernel: alg: ahash: sha3-256-s390 test failed (wrong result) on test vector "random: psize=4096 ksize=0", cfg="random: may_sleep use_final src_divs=[<flush>100.0%@+706] dst_divs=[100.0%@+4037] key_offset=114" May 23 13:50:09 b8345006.lnxne.boe kernel: 000000a0: ed 2d d5 42 1f 0f f5 1c fb 69 23 c2 18 9f 61 73 May 23 13:50:09 b8345006.lnxne.boe kernel: 000000b0: 5b a1 0c 37 60 b6 2f 3c 8c 28 a4 19 12 cc 1f a6 May 23 13:50:09 b8345006.lnxne.boe kernel: 000000c0: 62 6d bb a2 b3 70 ba a3 May 23 13:50:09 b8345006.lnxne.boe kernel: alg: self-tests for sha3-256 using sha3-256-s390 failed (rc=-22) May 23 13:50:09 b8345006.lnxne.boe kernel: alg: ahash: sha3-224-s390 test failed (wrong result) on test vector "random: psize=1536 ksize=0", cfg="random: inplace_two_sglists use_final nosimd_setkey src_divs=[83.33%@+15, <flush,nosimd>6.79%@+17, 4.94%@+4007, <reimport>4.94%@+1688] key_offset=1" > > Thanks, -- Ingo Franzki eMail: ifranzki@xxxxxxxxxxxxx Tel: ++49 (0)7031-16-4648 Linux on IBM Z Development, Schoenaicher Str. 220, 71032 Boeblingen, Germany IBM Deutschland Research & Development GmbH Vorsitzender des Aufsichtsrats: Gregor Pillen Geschäftsführung: David Faller Sitz der Gesellschaft: Böblingen / Registergericht: Amtsgericht Stuttgart, HRB 243294 IBM DATA Privacy Statement: https://www.ibm.com/privacy/us/en/
Attachment:
Description: PNG image
Attachment:
Description: PNG image
